Description
Lamda
Input: works best with 10Vpp signals
Cut Off Frequency Range: 20Hz – 20KHz
Cut Off CV: accepts +/-12V
Post: accepts +/-12V
VCA: accepts +/-12V, works best at +/-5V
Output: Maximum 12Vpp, depending on the setting
20 HP

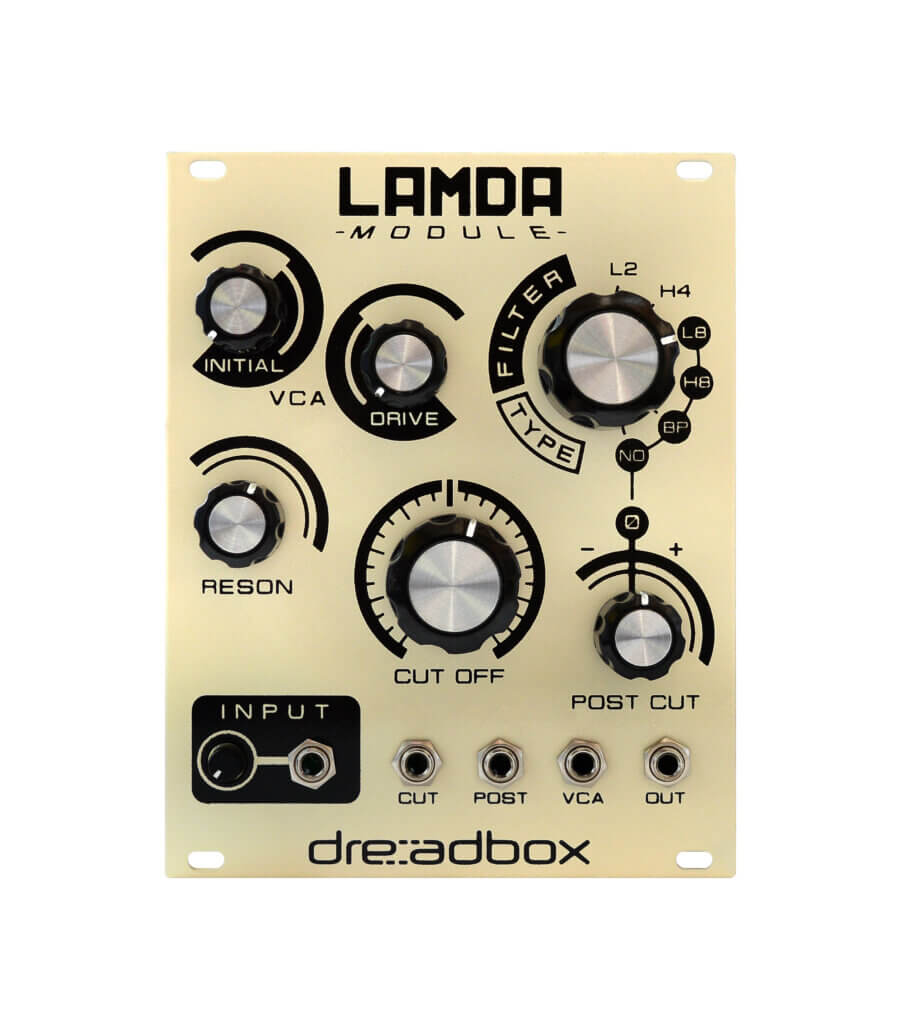

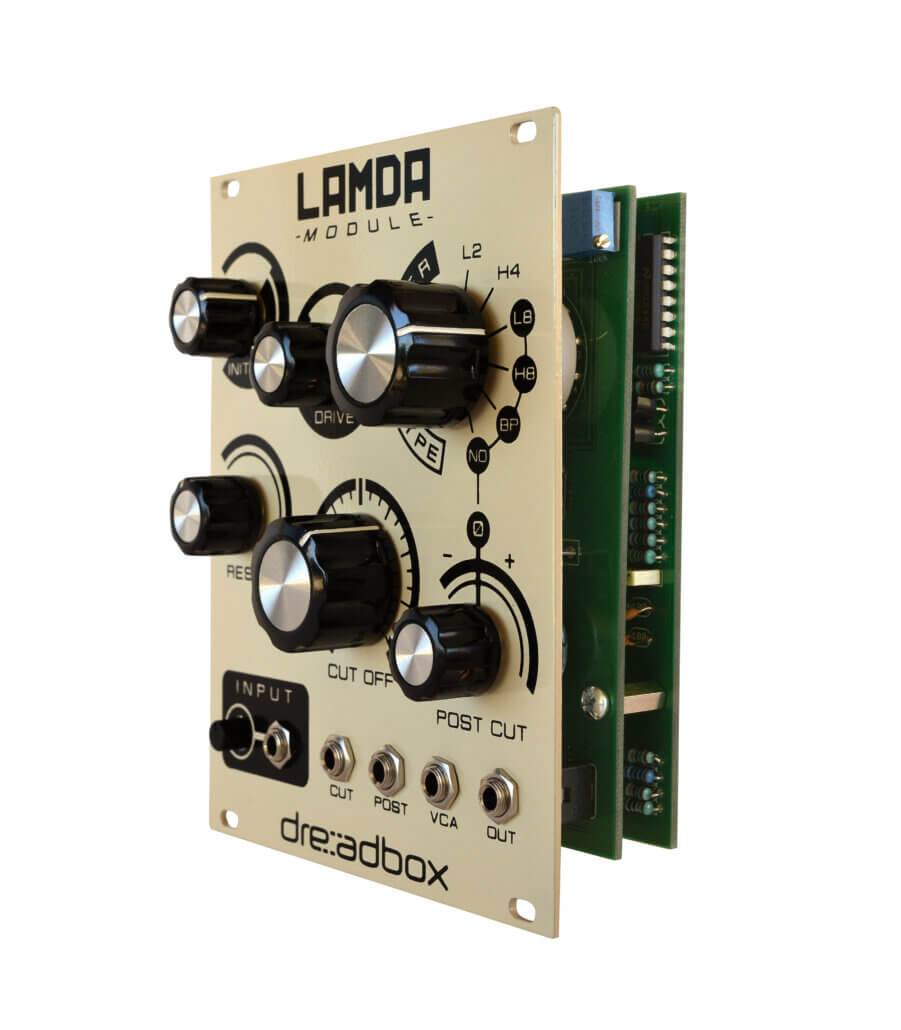

Lamda -module-
$569.00
8-pole 48dB state variable filter
Dual Resonance frequencies
Filter types
– 2pole Low Pass (single resonance frequency)
– 4pole High Pass (single resonance frequency)
– 8pole Low Pass
– 8pole High Pass
– 8pole Band Pass
– 8pole Notch
OTA VCA
OTA Drive Circuit
Filter can be pre-driven with high input levels
Out of stock
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 12.5 × 6.5 × 3 in |
